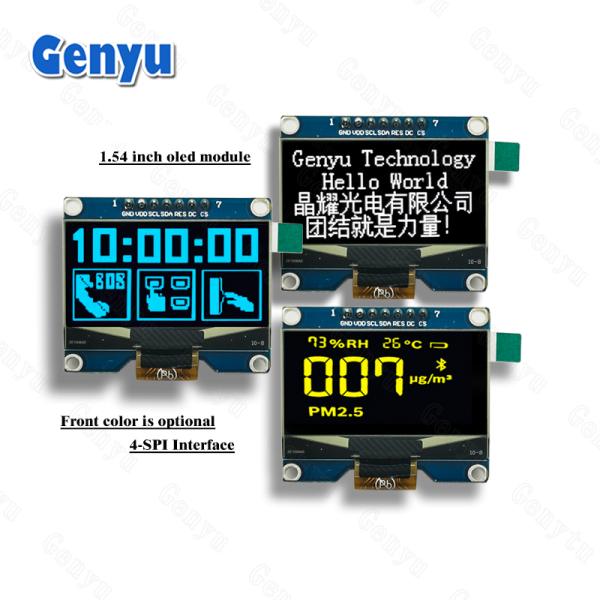

1.54 Inch OLED Display Module White Blue Yellow 128x64 Resolution SPI Interface
Key Features:
-
Display Resolution: Depending on the module, typically 128x64 pixels or 128x128 pixels.
-
Interface: Common interfaces include I2C or SPI, making them easy to connect with microcontrollers like Arduino, Raspberry Pi, or ESP32.
-
Power Consumption: OLEDs are known for low power consumption, especially when displaying darker content since they don't require a backlight.
-
Color Display: Many 1.54-inch OLED modules offer monochrome versions (e.g., white, blue, or yellow) are available.
-
Shape: The display can be square or rectangular, which depends on your designs.
Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-92 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Display Color | Blue or White or Yellow |
| 5 | Panel Size | 1.54 Inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size | 42.04(W) x 37.0(H) mm |
| 8 | View Area | 37.06(W) x19.52(H) mm |
| 9 | Active Area | 35.06(W) x17.52(H) mm |
| 10 | Drive IC | SPD0301 |
| 11 | Interface | 4-wire SPI |
| 12 | Operating Temperature | -40~+70℃ |
| 13 | Voltage | 3.3V |
| 14 | PIN Pitch | 2.54 mm |
OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.
A 1.54-inch OLED display, due to its compact size, is suitable for a wide range of applications in various fields.
Here are some common and innovative applications:
1. Wearable Devices
- Smartwatches: The small size makes it ideal for use in compact smartwatches or fitness trackers, displaying time, notifications, heart rate, and other health metrics.
- Fitness Bands: A 1.54-inch OLED can show key data like steps, calories burned, or workout details on small, lightweight fitness bands.
- Augmented Reality Glasses: Some AR glasses use small OLED screens to project information directly into the user's field of view.
2. IoT and Home Automation
- Smart Home Controllers: Used in smart home devices like controllers or hubs, where you need to display information such as temperature, lighting control, or system status.
- Weather Stations: Can display current weather data, forecasts, or temperature and humidity readings in DIY weather stations.
- Sensors/Status Displays: For devices like motion detectors, security cameras, or IoT sensors that need a small local display for status feedback.
3. Embedded Systems
- Microcontroller Projects: Used in various embedded systems (e.g., Arduino, ESP32, Raspberry Pi projects) to display output, sensor readings, or system statuses.
- Robotics: Small OLED screens can be mounted on robots to show status updates, control data, or real-time sensor feedback.
- Data Loggers: In devices that log data (temperature, pressure, or other sensors), the OLED display shows logged values and allows users to interact with the device.
4. Consumer Electronics
- Portable Gadgets: The display is often used in small, portable gadgets like keychain-sized devices, mini speakers, or digital thermometers.
- Handheld Instruments: Used in handheld measuring instruments (e.g., oscilloscopes, signal analyzers) to display readings or settings.
- Game Consoles: Some mini handheld game consoles use 1.54-inch OLEDs to display the game screen.
5. Medical Devices
- Medical Monitors: Used in portable health monitoring devices to display vital signs, blood glucose levels, heart rate, or other health data in real-time.
- Diagnostic Tools: In handheld diagnostic tools or compact medical devices, a 1.54-inch OLED can show status, readings, and instructions.
FAQ
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
3. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
4. Q: What is the delivery time?
A: For small orders: 7-15 days. For mass production: 25-30 days.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
